Beschreibung

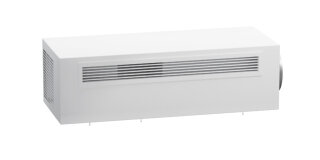

MC Topbox re. GVX600/900S
rechts-Ausführung
Topbox Standard für geniovent.x 600/900
S BR (Brüstungsvarianten mit seitlichem
Außenluftanschluss nach rechts):
geniovent.x 600 S BR-G-K3 (Art.-Nr.:
0041.0275)
geniovent.x 600 S BR-E-K3 (Art.-Nr.:
0041.0279)
geniovent.x 900 S BR-G-K3 (Art.-Nr.:
0041.0283)
geniovent.x 900 S BR-E-K3 (Art.-Nr.:
0041.0287)
Die geniovent.x 600/900 Topbox
Standard-R ist nur in Verbindung mit dem
Lüftungskompaktgerät geniovent.x 600/900
S BR verwendbar!
Topbox zum Aufsetzen auf
Lüftungskompaktgeräte geniovent.x
600/900 S BR zur Aufstellung ohne
Zuluft- und Abluftkanal. Außenluft- und
Fortluftanschluss rechtsseitig
angeordnet (Außenluftanschluss ist am
Lüftungskompaktgerät geniovent.x 600/900
S BR angeordnet).
Fortluftanschluss rechts, DN 315
(passend zum Außenluftanschluss rechts
am geniovent.x 600/900 S BR-Gerät)
Mit Gitter für Zuluft an der Vorderseite
und Gitter für Abluft links.
Gesamthöhe Topbox montiert auf
Lüftungskompaktgerät geniovent.x 600/900
S BR beträgt 2476 mm.
Topbox für eine frei ausblasend und
ansaugende Aufstellung der geniovent.x S
Geräte.
Mit Gitter für Zu- und Abluft und
Fortluftdurchführung.
Höhe 450 mm, andere Höhe oder
projektbezogene Connectbox auf Anfrage.
Es müssen mindestens 5 Topboxen einer
Ausführung bestellt werden.
Artikel: TB GVX600/900S R
Farbe: weiß, ähnlich RAL 9010
Gewicht: 150 kg
Gewicht mit Verpackung: 200 kg
Breite: 1500 mm
Höhe: 450 mm
Tiefe: 597 mm
Breite mit Verpackung: 1600 mm
Höhe mit Verpackung: 550 mm
Tiefe mit Verpackung: 697 mm
Verpackungseinheit: 1 Stück
